EZBoard

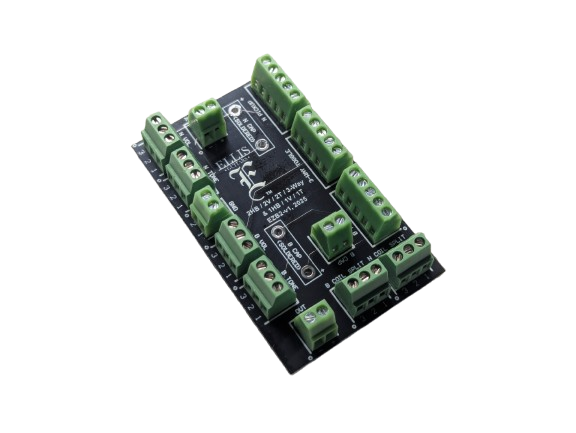

The EZBoard, from Ellis Guitars, is a no battery, totally solderless central wiring solution for your electric guitar or bass. The EZBoard makes tasks like upgrading your pickups or replacing scratchy pots as simple as using a screwdriver.

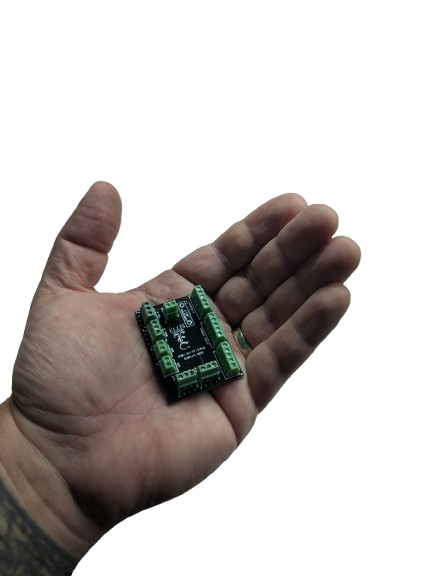

The EZBoard has a small footprint, comfortably fitting within most control cavities. It comes in a variety of configurations, opening up the possibility of solderless maintenance & mods to virtually any guitar on the market.

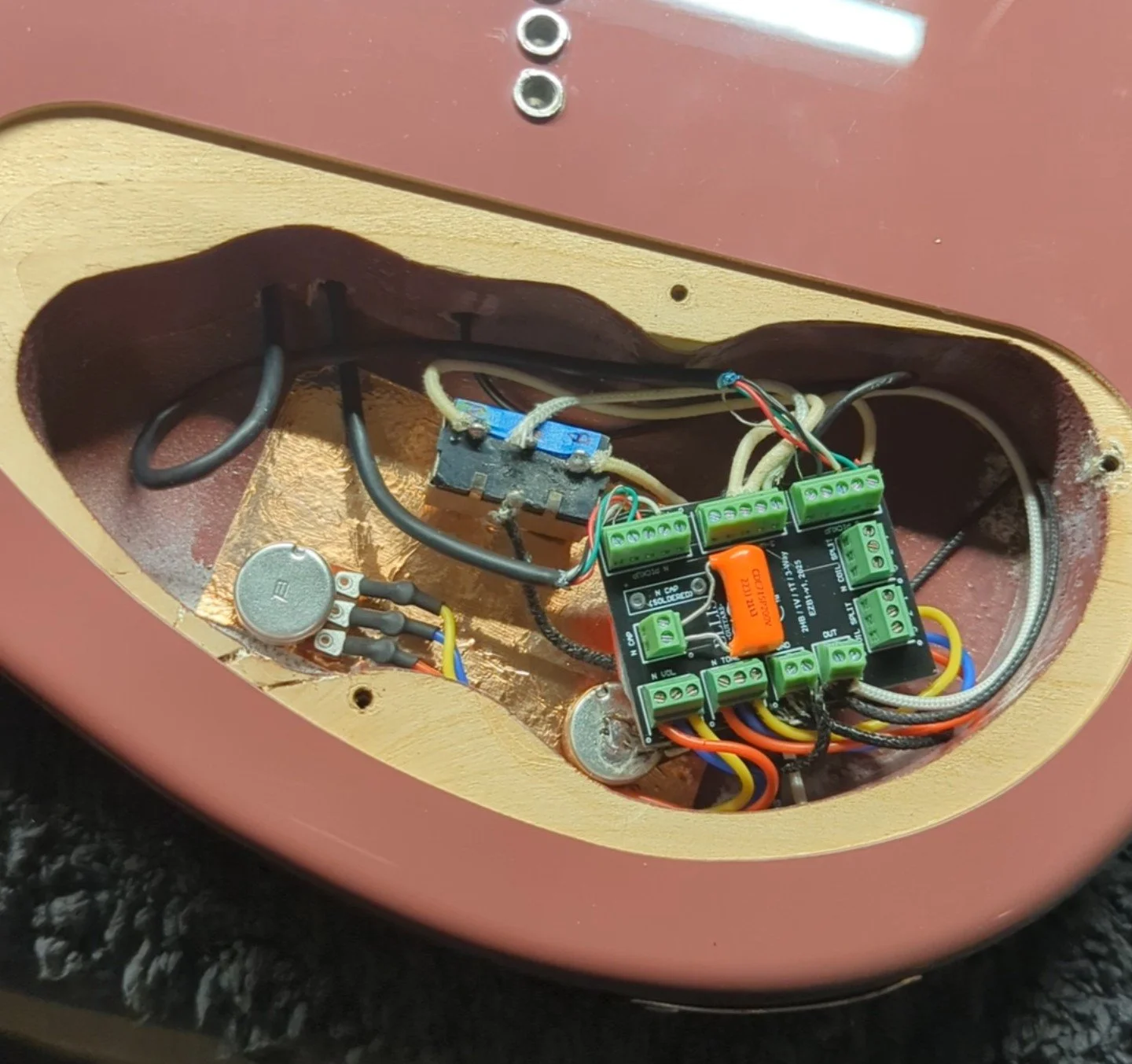

With EZBoard, all the wiring is already done for you, so all you have to do is select the parts you want to use and then just screw them in to the EZBoard. Maintenance is a snap. If you want to remove a bad pot, swap out a bridge pickup, or upgrade your output jack, it’s all the same. All you have to do is unscrew the part, swap out the part with the new one, and just rescrew it back in. Done. This system is modular as well, so only use the components you want and no more. If your system does not need a tone knob, just don’t add it.
Perfect for Guitar Repair shops, Techs on the road, or for the guitarist that just wants to streamline his guitar maintenance.
Current Configurations Offered:
*note: Since the EZBoard is modular, certain boards can be used for multiple layouts. Some layouts can appear on more than one board. If you don’t see a layout you are after, drop us a message on the CONTACT US page to let us know what our next boards should be.
EZB1 -
2 Pickups, 1 Volume, 1 Tone, 3-way Toggle, 2 Coil Splits (Neck and Bridge Pickups)
2 Pickups, 1 Volume, 1 Tone, 3-way Toggle
2 Pickups, 1 Volume, 3-way Toggle
1 Pickup, 1 Volume, 1 Tone, 1 Coil Split
1 Pickup, 1 Volume, 1 Tone
1 Pickup, 1 Volume
EZB2 -
2 Pickups, 2 Volume, 2 Tone, 3-way Toggle, 2 Coil Splits (Neck and Bridge Pickups)
2 Pickups, 2 Volume, 2 Tone, 3-way Toggle
2 Pickups, 2 Volume, 3-Way Toggle
1 Pickup, 1 Volume, 1 Tone, 1 Coil Split
1 Pickup, 1 Volume, 1 Tone
1 Pickup, 1 Volume
